For renovation work, a door decision is rarely just about closing an opening. It affects circulation, daylight, acoustics, fire separation, privacy, accessibility, installation sequencing, and the condition of the existing structure. Custom Glass Door Systems become commercially sensible when a standard-sized swing or sliding door would force compromises in more than one of these areas.

The strongest case for a custom solution is not simply that a glass door looks contemporary. It is that the renovation has unusual dimensions, complex movement patterns, insufficient light, or a requirement to preserve a particular architectural character. In these circumstances, using an off-the-shelf door may appear less expensive at purchase, but can create additional site work, visual inconsistencies, future maintenance problems, or operational limitations that cost more over the life of the property.

A sound decision begins with the opening and the building conditions, rather than with a preferred door style. The key question is: what problem must the new door solve that a conventional system cannot?

Renovations with non-standard openings are the clearest trigger

Existing buildings rarely provide the clean, square, consistently dimensioned openings assumed by catalogue products. Older residential properties may have uneven walls, altered floor levels, concealed steelwork, irregular masonry returns, or structural movement accumulated over decades. Commercial fit-outs can inherit openings altered several times by former tenants.

Where the opening cannot be economically rebuilt, a custom glass system can be designed around verified site dimensions. This is especially relevant for:

• wide openings between a kitchen and dining area;
• double-height or unusually tall interior partitions;
• loft conversions with sloped ceilings or exposed structural elements;
• openings in thick masonry walls where standard frame depths do not work;
• renovations requiring doors to align with retained windows, glazing bars, or original trim.

Customisation should not mean measuring once and manufacturing immediately. The opening needs a formal survey after demolition is sufficiently complete. Measurements should record not only width and height but also plumb, level, diagonal variation, wall build-up, finished-floor level, substrate condition, and any services that may interfere with tracks, pivots, or closers. A glass panel has very limited tolerance for site error. Unlike a timber leaf that can sometimes be trimmed, toughened glass cannot be cut after tempering.

For this reason, a late measurement change can have a larger programme effect than many teams anticipate. The glass, hardware, seals, and fixing positions are interdependent. A revised panel size may require re-engineering rather than a simple workshop adjustment.

When daylight needs to travel through the plan

One of the most practical uses of glass in a renovation is to improve the distribution of borrowed light. Deep-plan homes, subdivided apartments, internal corridors, and converted buildings often contain rooms with little or no direct access to external windows. Replacing a solid internal door or opaque partition with glazed elements can allow daylight to pass from brighter rooms into darker spaces while retaining a physical boundary.

This can be valuable where a full open-plan layout would be unsuitable. Kitchens may need to be separated from living spaces because of cooking noise and odours. A home office may require acoustic control. A reception area may need a defined entry threshold. In each case, glazing can preserve visual connection without removing the door altogether.

However, transparency should not be treated as an automatic benefit. Clear glass can expose clutter, reduce perceived privacy, create uncomfortable sightlines into bedrooms or bathrooms, and increase glare. The better response may be reeded, acid-etched, patterned, tinted, or partially obscured glass. Divided-light configurations can also provide visual interest and reduce the impression of a single large reflective surface.

The specification should assess daylight alongside solar exposure. For internal doors, solar gain is usually less significant than for exterior glazing, but a glass partition facing a strongly sunlit façade can still introduce glare and unwanted heat into an adjacent room. The orientation of the building, window shading, and room use matter.

Space constraints often determine the operating system

A renovation may justify a custom system because the available floor area does not accommodate a conventional hinged leaf. A 900 mm swing door needs a clear arc of operation. In a narrow hallway, compact ensuite, small utility room, or kitchen passage, that arc can obstruct circulation, furniture, or adjacent doors.

Sliding systems, pocket doors, folding configurations, and pivot doors each solve different constraints:

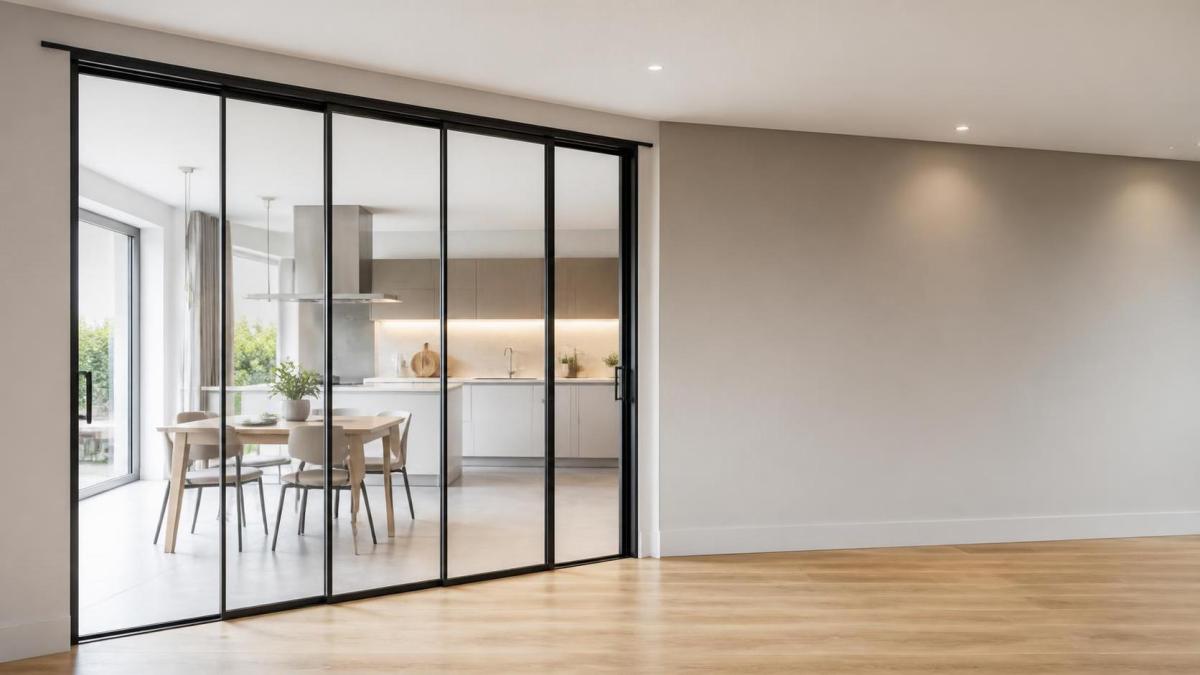

• Top-hung sliding doors can keep floor transitions clear and suit spaces where a wall is available for the panel to travel across.
• Pocket systems maximise usable room area but require a suitable wall cavity, careful coordination with electrical services, and access to serviceable track components.
• Bi-fold or folding glass doors can open a broad internal connection, though they require stacking space and more hardware components than a single-panel system.
• Pivot doors can handle large or visually substantial panels, but their pivot locations and floor or head fixings must be coordinated with the structure and floor finish.
• Frameless swing doors work well in compact openings where visual lightness is important, provided the hinges, closers, and adjacent surfaces are designed for the panel weight.

The common error is selecting a door mechanism from appearance alone. A sliding door may save floor area but can provide less acoustic separation than a well-sealed hinged system. A floor track may be unacceptable where step-free access, cleaning, or water management is a concern. A pocket door may be impractical if the intended wall contains plumbing, structural bracing, or a distribution board.

The operational decision should be made using the real furniture plan and circulation routes, not an empty-room drawing. Door movement often conflicts with the layout only after cabinetry, radiators, islands, wardrobes, or furniture are installed.

Acoustic expectations need to be set early

Glass doors are often assumed to be poor acoustic barriers. That conclusion is too broad. The acoustic result depends on glass type, panel thickness, perimeter seals, frame construction, gaps at the head and threshold, and the quality of installation. In many interior applications, leakage around the edges matters as much as the glass itself.

Where speech privacy, concentrated work, or separation from noisy living areas is important, a frameless single-panel sliding arrangement may not be the right choice, even if it is visually attractive. A framed hinged or sliding system with continuous seals, suitable drop seals where applicable, and laminated acoustic glass may provide a better outcome. The performance target should be specified in relation to the actual use of the room, rather than using generic terms such as “soundproof.”

Likewise, if the renovation needs a genuine fire or smoke compartment, ordinary decorative glass doors cannot be assumed to meet that requirement. Fire-resisting doorsets are tested as complete assemblies: glass, frame, seals, hardware, and installation method all matter. Substituting hardware or glass after approval can invalidate the intended performance. The applicable building code and the tested system documentation should govern this part of the design.

Safety is a system issue, not just a glass choice

Large glass panels in circulation routes need careful safety planning. The required safety glazing and marking rules differ by jurisdiction and by location within the building. In the United States, commonly referenced requirements include CPSC 16 CFR Part 1201 and ANSI Z97.1; European projects may refer to standards such as EN 12150 for thermally toughened safety glass and EN 12600 for pendulum impact testing. Local regulations and the project’s approved design remain the controlling basis.

For the renovation team, the practical point is to define safety requirements before procurement. This includes identifying hazardous locations, selecting appropriate toughened or laminated glass, confirming panel edge finishing, and ensuring manifestations or visual markers are considered where large clear panels could be mistaken for an open passage.

Laminated glass may be preferable where post-breakage retention is important, while toughened glass offers a familiar safety-break pattern and is widely used for interior doors. The choice cannot be reduced to a simple hierarchy; it depends on the risk scenario, hardware design, panel dimensions, and regulatory requirements.

Hardware load capacity is equally critical. Door weight rises quickly as panel size and thickness increase. Hinges, pivot sets, tracks, wall anchors, overhead supports, and glass preparation must be specified as one engineered package. Fixing a heavy system to lightweight partitioning without proper reinforcement is a recurring failure mode in refurbishments.

Custom glass is most valuable when it protects design intent

Some renovation projects depend on preserving a building’s original identity while introducing modern performance. In period homes, converted warehouses, and adaptive-reuse schemes, standard doors can look disproportionate beside retained arches, steel windows, deep reveals, or heritage detailing. A made-to-measure glass system can match sightlines, use appropriate frame colours, accommodate unusual heights, and create a contemporary intervention without visually overwhelming the existing fabric.

Steel-look glazed doors are frequently chosen in this context, but they need to be assessed beyond their appearance. Narrow sightlines may increase fabrication complexity. Decorative bars may be surface-applied or integral to the system, with different cleaning and durability implications. Dark finishes can reveal scratches or fingerprints more readily than lighter options. For a high-use location, maintenance expectations should influence the finish and hardware selection.

There are also situations where glass is not the best answer. Bedrooms, utility rooms, storage spaces, and areas needing strong privacy or impact resistance may benefit from a solid or composite leaf. A mixed strategy is often more effective than applying glass everywhere. For example, a renovation may use custom glass between shared living zones while retaining solid doors for private rooms and service spaces. Products such as a Premium WPC Door with PVC Finish may be considered for interior locations where moisture resistance, easy cleaning, and an opaque door are more relevant than daylight transfer. The important point is to compare systems by room function, not by a single visual theme.

Programme risk usually sits at the interfaces

Custom Glass Door Systems require more coordination than standard internal doors. The risk is manageable, but only if responsibilities are clear. The design team, opening contractor, ceiling contractor, flooring installer, glazing supplier, hardware supplier, and installer may all affect the final result.

Critical coordination points include:

• structural backing or lintel capacity for top-hung tracks and pivots;
• finished floor buildup and the precise location of thresholds or guides;
• allowance for movement joints, especially in longer partitions;
• ceiling depth and access for concealed tracks or closers;
• wall finishes completed to the required tolerance before final measurement;
• electrical switches, sockets, sprinkler heads, and HVAC grilles near moving panels;
• protection of glass and hardware after installation.

The final measurement should occur after the opening is stable but early enough to protect the manufacturing lead time. It is also prudent to confirm who owns the setting-out dimensions. A supplier can manufacture accurately to approved drawings and still face a site-fit problem if the building contractor has not delivered the opening to the agreed tolerance.

Installation sequencing deserves attention. Glass panels are vulnerable after fitting, particularly during flooring, painting, joinery, and final cleaning. If installed too early, they may be scratched, chipped, or repeatedly removed to allow other trades access. If installed too late, commissioning and snagging may be compressed. A protected, phased installation plan is usually more reliable than treating the door as a final decorative item.

Assess lifecycle cost rather than the initial quotation

Custom work commands a higher initial cost because it includes surveying, design coordination, glass processing, specialised hardware, and installation expertise. That premium is justified when it avoids rebuilding an opening, increases usable space, preserves daylight, improves circulation, or supports the property’s intended market position.

It is less justified where a standard door can meet the functional requirement with minimal adaptation. A simple replacement in a conventional, square opening may not benefit materially from bespoke glazing.

Cost comparisons should include the full scope: structural reinforcement, wall alterations, electrical relocation, finishes around tracks, hardware, delivery access, installation equipment, and future servicing. For sliding and folding systems, ask whether rollers, soft-close components, guides, seals, and adjustment mechanisms can be replaced without dismantling surrounding finishes. A visually minimal system with inaccessible components can become expensive to maintain.

It is also wise to review supplier submittals for panel sizes, glass build-up, hardware ratings, finish samples, warranties, maintenance instructions, and evidence relevant to the required safety or fire performance. Samples are particularly useful because “clear,” “bronze,” “black frame,” and “oak adjacent finish” can look very different under site lighting.

The practical threshold for choosing a bespoke system

A custom glass door system makes the most sense when it solves several renovation constraints at once: an irregular opening, a lack of daylight, a tight circulation zone, a requirement for controlled visual connection, or a design need that standard products cannot satisfy. It is not automatically a premium upgrade. It is a targeted construction solution whose value depends on the building conditions and the operational brief.

The most successful installations are decided early, measured late, and coordinated continuously. They treat glass, hardware, structure, finishes, safety, and maintenance as one system. When those conditions are met, bespoke glazing can do more than modernise an interior: it can make an existing building work better without sacrificing the character that made the renovation worthwhile.
